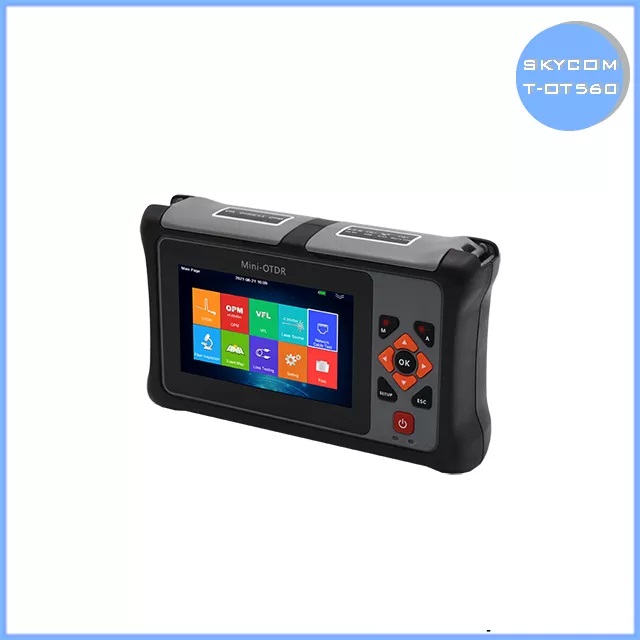

MINI OTDR-TOT560 SKYCOM
این شرکت وارد کننده مستقیم محصولات SKYCOM می باشد .
T-OT750 series tester is a comprehensive optical fiber measuring instrument, to solve the measurement of various parameters of optical fiber. It mainly USES OTDR function and has other common measuring functions.
Really reflected: ONE MACHINE, TESTING ALL!
Physical indicators：
4.3-inch capacitive touch screen with full viewing , TFT 800x480 resolution
Water-resistant IPX2, dust-resistant IP5x, shock-resistant
Power supply: Adapter /Charger input 100-240 VAC, 50Hz, lithium battery
Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours
File Format:Sor standard file format
Memory:>40000 tested results
Size: 175x105x45mm, weight: 560g (including battery)
Working temperature: -10~+55°C, storage temperature: -20~+80°C
Technical indicators
| Model No. | Wavelength | Dynamic Range | Max. Test Range |
| TOT560-A24D | 1310/1550nm | 24/22dB | 80km |
| Measuring range | 100m、500m、2km、5km、10km、20km、40km、80km/90km | ||
| Pulse width | 5ns 10ns 20ns 50ns 100ns 200ns 500ns 1us 2us 5us 10us | ||
| Sampling resolution | Minimum: 0.2m | ||
| Event dead zone | < 2.0m | ||
| Attenuation dead zone | < 7.0m | ||
| The sampling point | 64,000 point | ||
| Linearity | ≤0.05dB/dB | ||
| Loss threshold | 0.01dB | ||
| Loss resolution | 0.001dB | ||
| Range resolution | 0.01m | ||
| Range accuracy | ±(0.5m+Range×3×10-5+Sampling resolution) （Excluding refractive index error） | ||
| Memory | >40000 tested results | ||
| File Format | Sor standard file format | ||
| Data interface | 2 USB(Type A×1, Micro USB×1, SD card) | ||
| Screen | 4.3-inch TFT-LCD (Standard distribution capacity touch screen) | ||
| Power supply | Adapter /Charger input 100-240 VAC, 50Hz, lithium battery | ||
| Battery | 3.7V/5200mAh, Standby time > 10 hours | ||
| Temperature | Working temperature：-10℃~+55℃； Storage temperature：-20℃~+80℃ | ||
| Humidity | ≤95%（No condensation） | ||
| Size/Weight | 175x105x45mm / 0.56kg（Contain the battery） | ||
| OPM | Type A：+10dBm~-70dBm;Type B：+26dBm~-50dBm | ||
| VFL | 10mW，CW/2Hz | ||
| LS(Laser Source) | The output power：-5dBm，Modulation frequency：CW/270Hz/1KHz/2KHz | ||
| Network Cable test | Support network wire sequence testing and wire alignment | ||
Accessories
| Standard | FC adaptor, Power adapter, Lithium battery, USB cable, Quick guide, Portable package |
